11 Pin configurations
11.1 Ethernet connector and cable

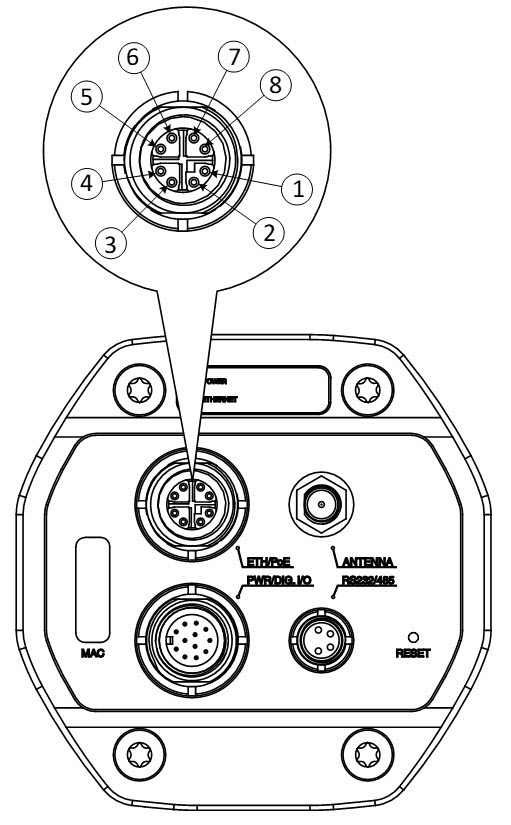

Figure 11.1 Female X-coded M12 Ethernet connector |
|||
|
Pin
|
Configuration
|
||
|
1
|
DA+
|
||
|
2
|
DA-
|
||
|
3
|
DB+
|
||
|
4
|
DB-
|
||
|
5
|
DD+
|
||
|
6
|
DD-
|
||
|
7
|
DC-
|
||
|
8
|
DC+
|
||
Figure 11.2 Ethernet cable M12 to RJ45
11.2 Power/Digital I/O connector and cable

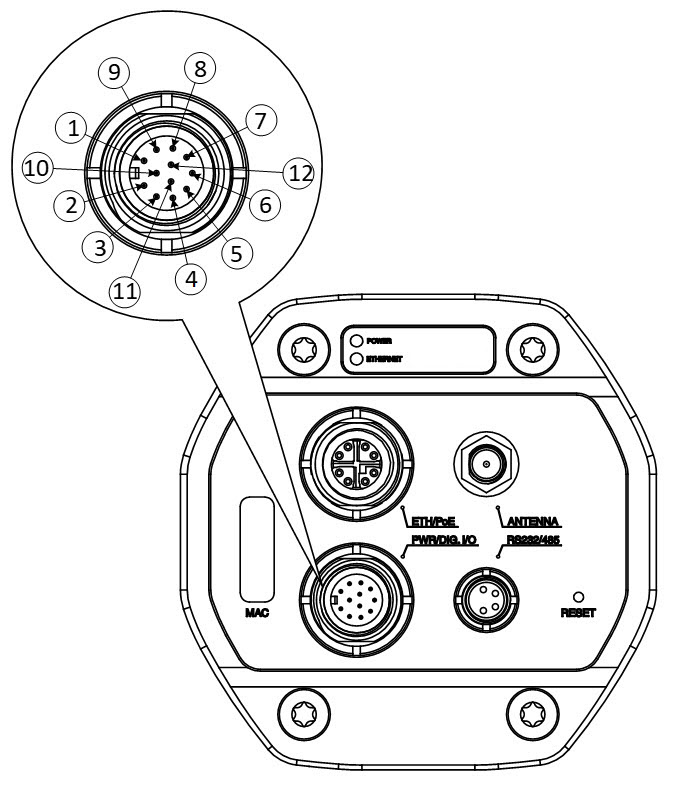

Figure 11.3 Male A-coded M12 Power/Digital I/O connector |
|||
|
Pin
|
Configuration
|
||
|
1
|
EXTPWR_RTN
|
||
|
2
|
EXTPWR_IN
|
||
|
3
|
FAULT_A
|
||
|
4
|
FAULT_B
|
||
|
5
|
DIGOUT1A
|
||
|
6
|
DIGOUT1B
|
||
|
7
|
DIGOUT2A
|
||
|
8
|
DIGOUT2B
|
||
|
9
|
DIGIN1
|
||
|
10
|
DIGIN2
|
||
|
11
|
Not Connected
|
||
|
12
|
DIGIN_RTN
|
||
Figure 11.4 Cable M12 to pigtail |
Section A—A
|
Wire colour
|
|
|
1
|
Black
|
||
|
2
|
Red
|
||
|
3
|
Green
|
||
|
4
|
Purple
|
||
|
5
|
Yellow
|
||
|
6
|
Pink
|
||
|
7
|
Orange
|
||
|
8
|
Brown
|
||
|
9
|
White
|
||
|
10
|
Grey
|
||
|
11
|
Light blue
|
||
|
12
|
Blue
|
11.3 RS232/RS485 connector

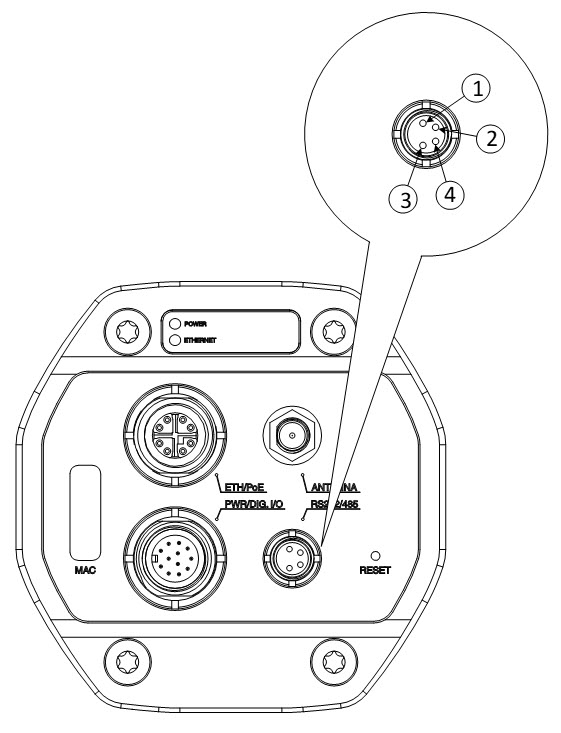

Figure 11.5 Male A-coded M8 RS232/RS485 connector |
|||
|
Pin
|
Configuration
|
||
|
1
|
RS232_TXD alt RS485A
|
||
|
2
|
RS232_RXD alt RS485B
|
||
|
3
|
Chassie GND
|
||
|
4
|
Not Connected
|
||
