19  Screening alarm

The screening alarm can be used to detect temperature anomalies in a series of inspected objects in a similar/fixed setup.

19.1  General

The basics of the screening alarm is to first build up a base of reference temperature samples. When an object is screened, the camera compares the measured temperature with the average of the reference samples. If the camera detects a temperature that is above a specified threshold, an alarm will trigger.

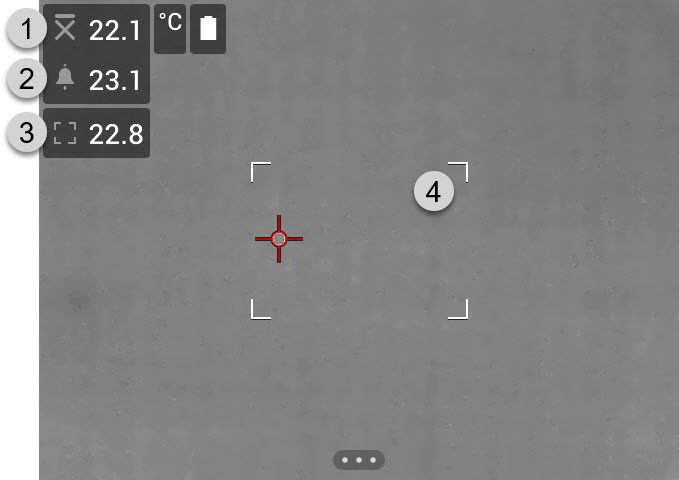

Graphic
  1. Sampled average temperature.
  2. Alarm limit.
  3. Measured temperature.
  4. Measurement box.
The camera detects and measures the temperature of the hottest spot within the measurement box.
An alarm will trigger when the measured temperature is higher than the alarm limit. The camera will also apply a red color to all parts of the image with a temperature above the alarm limit.
The alarm limit is the sum of a sampled average temperature and a specified allowed deviation.

19.2  Work flow

    The screening work flow involves the following steps:
  1. Activate and configure the screening alarm.
  2. Record reference samples.
  3. Perform the screening.
  4. Record new samples to keep the sampled average up to date.

19.2.1  Activate and configure the screening alarm

  1. Enable the screening mode by selecting icon (Settings) > Device settings > User interface options > Screening mode = On.
  2. Activate the screening alarm by selecting icon (Recording mode) > icon (Screening).
  3. In the Screening dialog box, you can define the settings for the alarm:
    • Allowed deviation: The allowed deviation from the sampled average.
    • Alarm sound: Beep or no sound when the alarm triggers.

19.2.2  Record reference samples

Before the screening can start, you must record reference samples. These are used to calculate the reference temperature average.
You record the reference samples by screening 10 inspection objects. Make sure these objects have a normal temperature.
  1. Aim the camera toward an inspection object with a normal temperature. The object should be within the frame of the measurement box.
  2. Adjust the camera focus.
  3. To record a sample, push one of the programmable buttons.
  4. Repeat the steps above until 10 samples have been recorded.

19.2.3  Perform the screening

  1. Aim the camera toward an inspection object. The object should be within the frame of the measurement box.
  2. Adjust the camera focus.
  3. The camera measures and evaluates the temperature. If the temperature is higher than the alarm limit, an alarm will trigger. The camera will apply a red color to all parts of the image with a temperature above the alarm limit.
  4. Optionally: Record a new sample.
    Push one of the programmable P buttons.
