P/N: 13303-0302

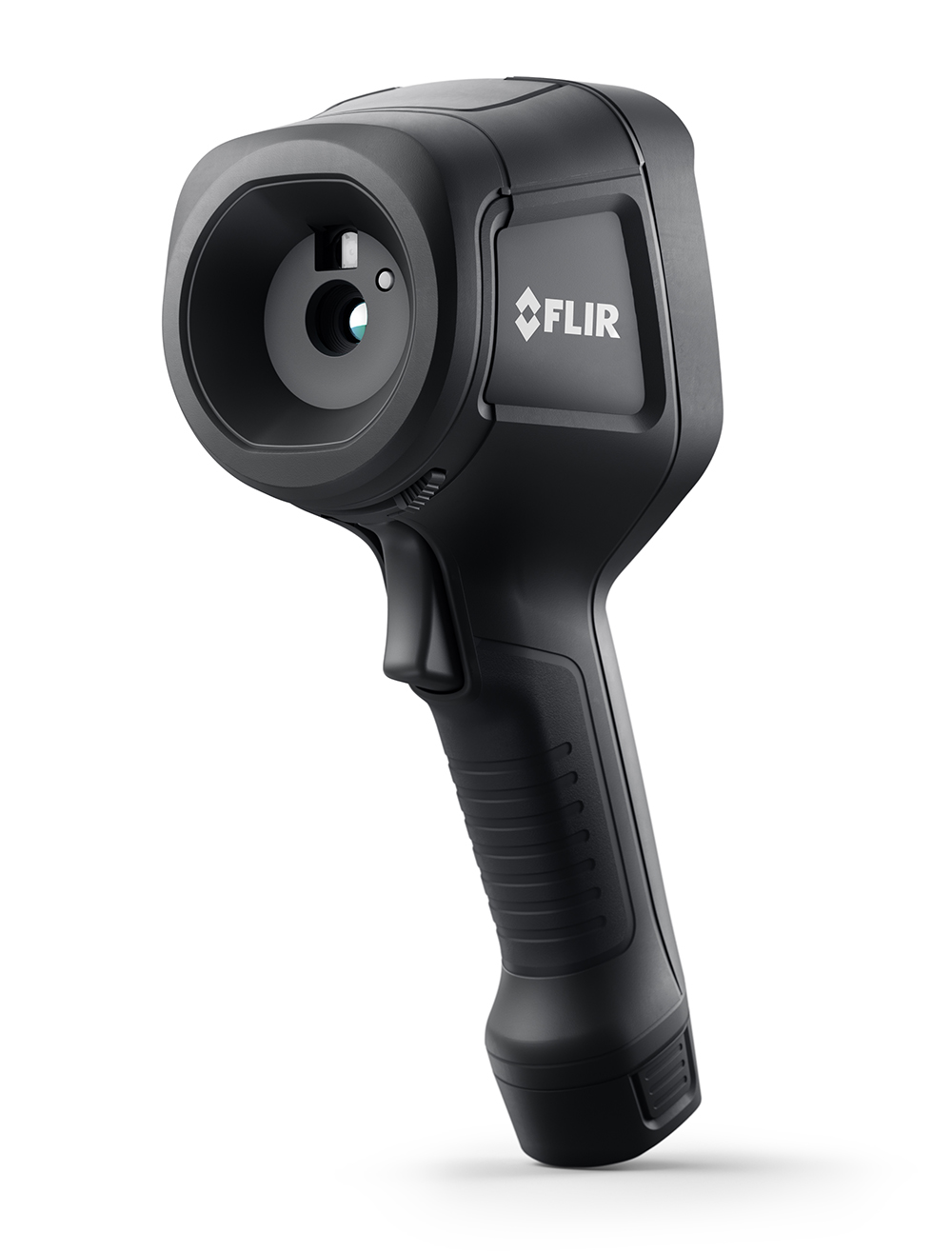

FLIR E8 Pro

Graphic
High-res image, RGB color space, 1000 px wide

Imaging and optical data
IR resolution
320 × 240 pixels
Thermal sensitivity/NETD
<0.04°C (0.07°F) / <40 mK at 30°C (86°F)
Field of view (FOV)
33° × 25
Minimum focus distance
0.36 m (1.18 ft.)
Spatial resolution (IFOV)
1.8 mrad
F-number
1.4
Image frequency
9 Hz
Focus
Fixed focus

Detector data
Detector type
Focal plane array (FPA), uncooled microbolometer
Spectral range
7.5–13 µm

User interface
Display
3.5 in. 640 × 480 color LCD
Touch screen
Capacitive touch
Text
Text annotation on image using onscreen keyboard
Flashlight
Manually activated bright LED

Image presentation
Display
3.5 in. 640 × 480 color LCD
Image adjustment
Automatic/Manual
1–Touch Level/Span
Yes
Digital zoom
Yes

Image presentation modes
Image modes
Thermal MSX, Thermal, Picture-in-Picture, Digital camera.
Multi Spectral Dynamic Imaging (MSX)
IR image enhanced with visible camera detail
Picture in Picture
IR area on visual image

Measurement


Camera temperature range
  • –20 to 200°C (–4 to 392°F)
  • 10 to 550°C (50 to 1022°F)
Object temperature range and accuracy (for ambient temp. 15 to 35°C (50 to 95°F) and object temp. above 0°C (32°F))
  • Range –20 to 200°C (–4 to 392°F):
    • 0 to 100°C (32 to 212°F): ±2°C (±3.6°F)
    • 100 to 200°C (212 to 392°F): ±2%
  • Range 10 to 550°C (50 to 1022°F):
    • 10 to 100°C (50 to 212°F): ±2°C (±7.2°F)
    • 100 to 550°C (212 to 1022°F): ±2%

Measurement analysis
Spotmeter
Center spot, box with min./max.
Isotherm
Above alarm, Below alarm
Delta T
Yes, NFPA 70B compliant
Emissivity correction
Variable from 0.1 to 1.0
Emissivity table
Emissivity table of predefined materials
Measurements correction
Emissivity, matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation

Set-up
Color palettes
Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
Set-up commands
Local adaptation of units, language, date and time formats

Storage of images
File formats
Standard JPEG, 14-bit measurement data included
Storage media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)

Digital camera
Digital camera, resolution
5 MP
Digital camera, FOV
52.7°

Video streaming
Radiometric IR video streaming
Yes, USB connection
Non-radiometric video streaming
Yes; MSX, Thermal, Visual, Picture in Picture.
USB Video Class colorized uncompressed with overlay 9 Hz.

Data communication interfaces
Interfaces
USB-C: Data transfer to and from PC and Mac device
Wi-Fi
Infrastructure (network)

Radio
Wi-Fi
  • Standard: 802.11 a/b/g/n
  • Frequency range:
    • 2400–2473 MHz
    • 5150–5250 MHz
  • Max. output power: 16 dBm

Power system
Battery type
Rechargeable Lithium-ion battery
Battery voltage
3.65 V
Battery operating time
4 hours at +25°C (+77°F) ambient temperature and typical use
Charging system
Battery is charged inside the camera or in specific charger.
Charging time
2 hours in charger. 4 hours to 90% capacity in camera.
Power management
Automatic shut-down
AC operation
AC adapter, 100–240 VAC input, 5 VDC output to camera
Battery documents
For documents like MSDS and UN38.3 test reports/summaries, see:

Environmental data
Operating temperature range
–15°C to +50°C (+5°F to +122°F)
Storage temperature range
–40°C to +70°C (–40°F to +158°F)
Humidity (operating and storage)
IEC 60068-2-30/24 h 95% relative humidity
EMC
  • EN 301 489-1
  • EN 301 489-17
  • EN 61000-6-2 (Immunity)
  • EN 61000-6-3
  • FCC 47 CFR Part 15 Class B (Emission)
Radio spectrum
  • ETSI EN 300 328
  • ETSI EN 301 893
  • FCC 47 CFR Part 15 C, E
  • RSS-247 Issue 2
Hazardous substances
  • WEEE 2012/19/EU
  • RoHs 2011/65/EU
Shock
25 g (IEC 60068-2-27)
Vibration
2 g (IEC 60068-2-6)
Drop test
2 m (6.6 ft.)
Safety
Camera:
  • IEC/EN 62368-1
Power supply:
  • IEC/EN 62368-1
  • UL/J/(AS/NZS) 62368-1
  • GB 4943
Declaration of conformity
See:

Physical data
Camera weight, incl. battery
0.610 kg (1.34 lb.)
Camera size (L × W × H)
244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in.)
Color
Black

Shipping information
Packaging, type
Cardboard box
List of contents
  • Infrared camera with battery
  • Extra battery
  • Battery charger
  • Power supply
  • USB cable
  • FLIR Thermal Studio Starter
  • Printed documentation
  • Hard transport case
Packaging, weight
3.13 kg (6.9 lb.)
Packaging, size
385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in.)
EAN-13
4743254006478
UPC-12
845188029166
Country of origin
Estonia
