Rev. 82695
Last modified 2022-01-25
Additional supporting documents:
­Mechanical drawings
P/N: 29428-281

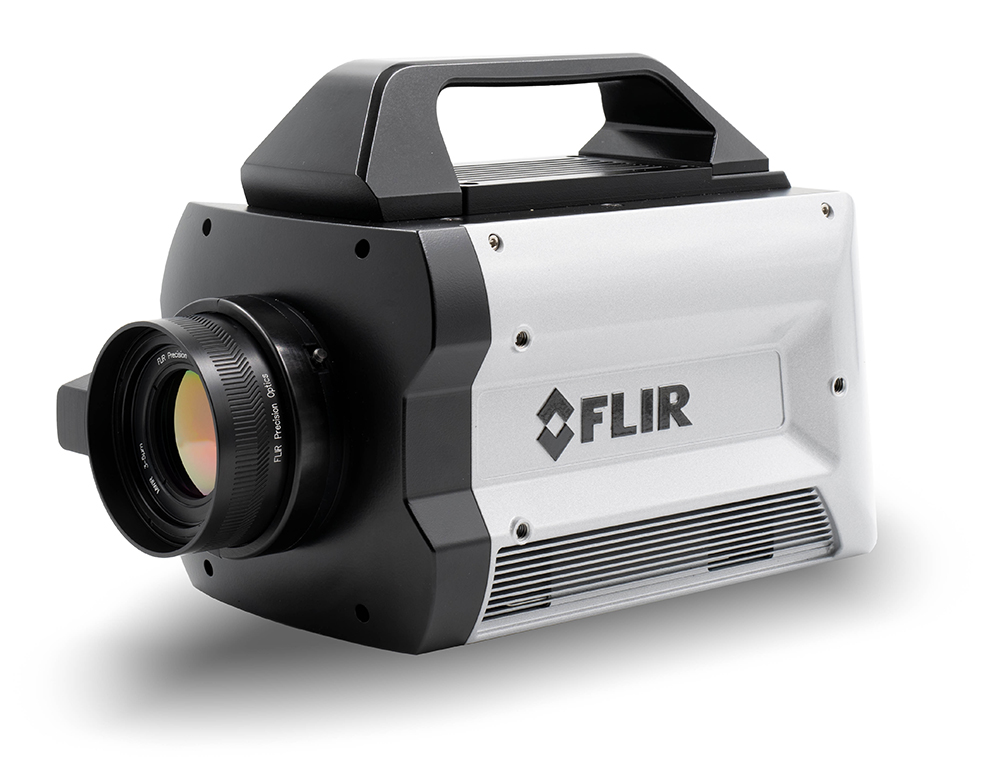

FLIR X8581 SLS LWIR (f/2.5)

Graphic
High-res image, RGB color space, 1000 px wide

Specifications


Model
X8581 SLS LWIR
Detector type
Strained layer superlattice (SLS)
Spectral range
7.5 µm (lower), 11.5–12.5 µm (upper)
Resolution
1280 × 1024
Detector pitch
12 µm
Thermal sensitivity/NETD
40 mK typical
Operability
99% typical
Sensor cooling
Linear sterling cooler

Electronics


Readout type
Snapshot
Readout modes
Asynchronous integrate while read,
Asynchronous integrate then read
Synchronization modes
Sync-in, Tri-Level Sync, Sync-out
Image time stamp
Internal precision timestamp, IRIG-B AM decoder, TSPI accurate
Trigger modes
Trigger In, Record Start, Header Based
Minimum integration time
270 ns
Pixel clock
355 MHz
Frame rate (full window)
Programmable; ~0.5 Hz to 181 Hz
Subwindow mode
Flexible windowing down to 64 × 4 (steps of 64 columns, 4 rows)
Dynamic range
14-bit
On-camera image storage
  • RAM (volatile): 16 GB RAM included
  • SSD (non-volatile): 512 GB included (compatible with 4 TB)
  • Data transfer: SSD to Research Studio via data streaming buses
Radiometric data streaming
Simultaneous Gigabit Ethernet (GigE Vision), Camera Link, CoaXPress® 1.1, dual 5 Gb links
Standard video
HDMI, SDI
Command and control
GigE, USB, RS-232, Camera Link, CXP (GenICam protocol supported over GigE or CXP)

Temperature measurement


Standard temperature range
-20°C to 350°C (-4°F to 662°F)
Optional temperature range
Up to 3000°C (5432°F)
Accuracy
≤100°C/212°F: ±2°C (±1°C typical)
>100°C/212°F: ±2% of reading (±1% typical)

Optics


Camera f/Number
f/2.5
Motorized lenses
17 mm, 25 mm, 50 mm, 100 mm, 200 mm
Manual lenses
17 mm, 25 mm, 50 mm, 100 mm, 200 mm
Micro/Macro lenses
1×
Lens interface
FLIR FPO-M (4-tab bayonet, motorized)
Focus
Motorized (compatible with manual)
Filtering
4-position warm filter wheel, standard 1-inch filters

Image/Video Presentation


Palettes
Selectable 8-bit
Automatic gain control
Manual, Linear, Plateau equalization, ROI, DDE
Overlay
Customizable (ability to toggle off)
Video modes
SDI: 720p@50/59.9, 1080p@25/29.97
Digital zoom
Auto, best fit

General


Operating temperature range
-20°C to 50°C (-4°F to 122°F)
Power
24 VDC (< 50 W steady state)
Weight w/handle, w/o lens
6.35 kg (14 lbs)
Size (L × W × H) w/o lens or handle
249 × 157 × 147 mm (9.8 × 6.2 × 5.8 in)
Mounting
2 x ¼ in. -20, 1 x 3/8 in. -16, 4 x #10 -24
Side: 3x ¼ in. -20 (each side)
Export classification
ECCN 6A003.b.4.a
Declaration of conformity
See:
