P/N: 4228270

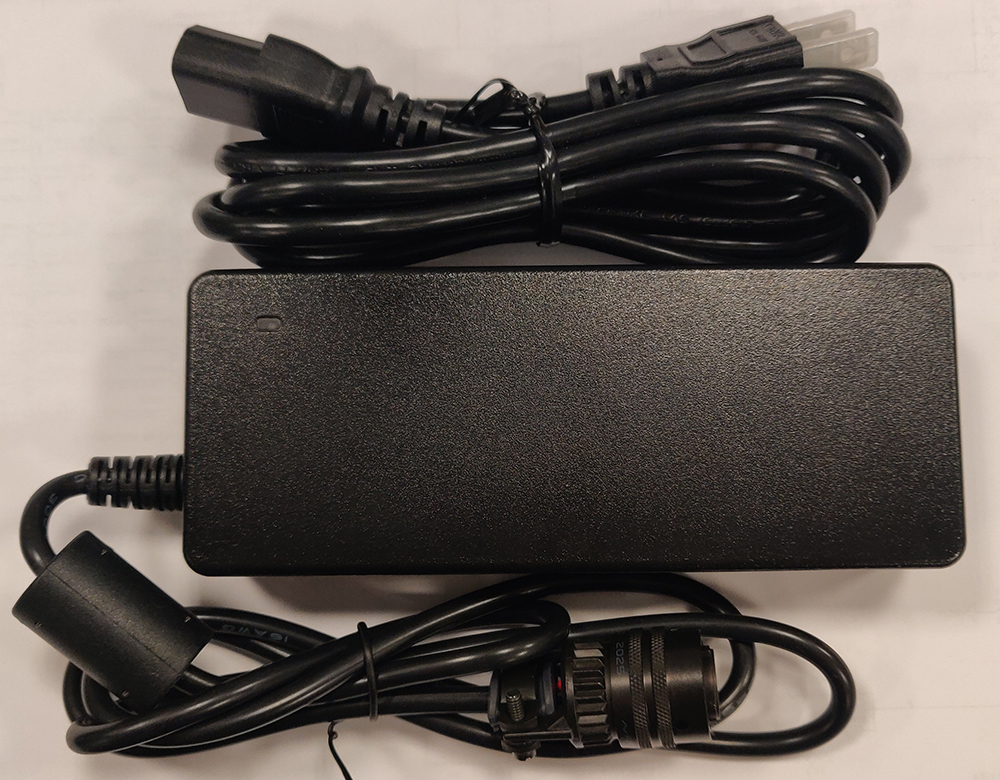

FLIR Science camera power supply

Graphic
High-res image, RGB color space, 1000 px wide

General description
A 24 V external AC-DC power converter is provided with the camera systems as a standard accessory. It is also available for purchase separately.

Power system
Voltage
A/C Input: 85 to 264 VAC, 47 to 63 Hz
DC Output: 24 V
Power
120 W / 5 A max

Physical data
Weight
0.62 kg
Size (L × W × H)
167 × 67 × 35 mm
Connector
  • A: +24 V IN
  • B: +24 V RTN
  • C: No Connect
Output connector: FLIR P/N 4228943 or AMPHENOL PN PT06E-12-3S(470)

Environmental data


Operating temperature range
–30 to 50°C (–22 to 122°F)
Certification logos
Graphic

Shipping information
Country of origin
China
Compatible with the following products:

EU Declaration of conformity
