Rev. 98866
Last modified 2024-08-21
P/N: 85903-0102

FLIR A700 24° f/1.0 Professional Science Kit

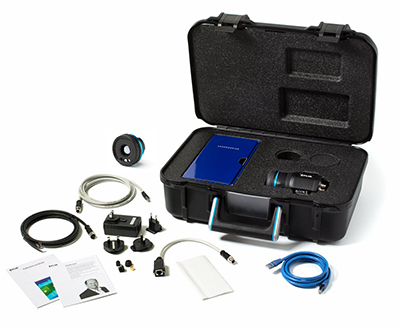

Graphic
High-res image, RGB color space, 1000 px wide

Imaging and optical data


Infrared resolution
640 × 480 pixels
Thermal sensitivity (NETD)
<25 mK, 24° @ +30°C (+86°F)
Field of view (FOV)
24° × 18°
Minimum focus distance
With 24° f/1.0 lens: 0.3 m (0.98 ft)
Minimum focus distance with MSX
0.5 m (1.6 ft)
Focal length
18 mm (0.71 in)
Spatial resolution (IFOV)
0.65 mrad/pixel
Lens identification
Automatic
f-number
1.04
Image frequency
30 Hz
Focus
  • One-shot contrast
  • Motorized
  • Manual

Detector data


Focal plane array/spectral range
Uncooled microbolometer/7.5–14 µm
Detector pitch
12 µm

Measurement


Camera temperature range
  • –20 to 120°C (–4 to 248°F)
  • 0 to 650°C (32 to 1202°F)
  • 300 to 2000°C (572 to 3632°F)
Object temperature range and accuracy
(for ambient temperature 15–35°C (59–95°F))
  • Range –20 to 120°C (–4 to 248°F):
    • –20 to 100°C (–4 to 212°F),
      accuracy ±2°C (±3.6°F)
    • 100 to 120°C (212 to 248°F),
      accuracy ±2%
  • Range 0 to 650°C (32 to 1202°F):
    • 0 to 100°C (32 to 212°F),
      accuracy ±2°C (±3.6°F)
    • 100 to 650°C (212 to 1202°F),
      accuracy ±2%
  • Range 300 to 2000°C (572 to 3632°F):
    • accuracy ±2%

Video/Radiometric streaming RTSP


Protocol
RTSP
Unicast
Yes
Multicast
Yes
Multiple image streams
Yes
Video streaming
Image quality
Bit rate set through Camera web
Video streaming, Image source 0:

Resolution (source 0)
640 × 480 pixels
Contrast enhancement
FSX / Histogram equalization (IR only)
Overlay (source 0)
With / Without
Image source (source 0)
Visual / IR / MSX
Pixel format (source 0)
YUV411
Encoding (source 0)
H.264 / MPEG4 / MJPEG
Video streaming, Image source 1:

Resolution (source 1)
1280 × 960 pixels
Overlay (source 1)
No
Image source (source 1)
Visual
Pixel format (source 1)
YUV411
Encoding (source 1)
H.264 / MPEG4 / MJPEG
Radiometric streaming
Resolution (radiometric)
640 × 480 pixels
Source
IR
Pixel format (radiometric)
MONO 16
Encoding (radiometric)
  • Compressed JPEG-LS
  • FLIR Radiometric

Video/Radiometric streaming GVSP (GigE Vision)


Protocol
GVSP
Unicast
Yes
Multicast
Yes
Multiple image streams
No, 1 stream only
Video streaming
Video streaming, Image source 0:

Resolution (source 0)
640 × 480 pixels
Contrast enhancement
FSX / Histogram equalization (IR only)
Overlay (source 0)
With / Without
Image source (source 0)
Visual / IR / MSX
Pixel format (source 0)
YUV422 or MONO 8
Encoding (source 0)
Un-compressed
Radiometric streaming
Resolution (radiometric)
640 × 480 pixels
Source
IR
Pixel format (radiometric)
MONO 16
Encoding (radiometric)
  • Temperature linear
  • FLIR Radiometric
  • Compressed JPEG-LS

Ethernet


Interface
  • Wired
  • Wi-Fi
Connector type
  • M12 8-pin X-coded, Female
  • RP-SMA, Female
Ethernet, purpose
Control, result, image, and power
Ethernet, type
1000 Mbps
Ethernet, standard
IEEE 802.3
Ethernet, communication
  • GigE Vision ver. 1.2
  • Client API GenICam compliant
  • TCP/IP socket-based FLIR proprietary
Ethernet, power
Power over Ethernet, PoE IEEE 802.3af class 3
Ethernet, protocols
  • IEEE 1588
  • ONVIF-S
  • SNMP
  • TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP

Digital Input/output


Connector type
M12 12-pin A-coded, Male (shared with external power)
Digital input
2x opto-isolated
Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital input, purpose
  • NUC
  • NUC disable
  • Image TAG (Start, Stop, General)
  • Image flow control (acc. SFNC 2.3)
    • Single frame (on trigg)
    • Multiframe (on trigg)
    • Continuous
    • Frame rate
    • ROI
Digital output
  • 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C)
  • Solid state opto relay
  • 1x dedicated as Fault output (NC)
Digital output, purpose
  • Programmatically set
  • Fault (NC)
Digital I/O, isolation voltage
500 VRMS

Power system


Connector type
M12 12-pin A-coded, Male (shared with Digital I/O)
Power consumption
  • 7.5 W at 24 V DC typical
  • 7.8 W at 48 V DC typical
  • 8.1 W at 48 V PoE typical
External power operation
24/48 V DC 8 W max
External voltage
Allowed range 18–56 V DC

RS-232/485 serial interface


Connector type
M8 A-coded, Male
Prerequisite for use
ONVIF must be initiated.
Serial communication, purpose
Pan & Tilt control
Serial communication, standard
Pelco D
Serial communication, HW interface
RS232 and RS485 exclusively
Scanlist support
Yes

Wi-Fi


Connector type
RP-SMA, Female
Standard
IEEE802.11a/b/g/n
Antenna
Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi)
Connection type
Peer to peer (ad hoc)‎ or infrastructure (network)‎

Environmental data


Operating temperature range
–20 to 50°C (–4 to 122°F)
Cooling plate is needed in temperatures above 40°C (104°F).
Maximum camera case temperature: 65°C (149°F)
Storage temperature range
IEC 68-2-1 and IEC 68-2-2, –40 to 70°C (–40 to 158°F) for 16 hours
Humidity (operating and storage)
IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17 (radio)
  • EN 61000-4-8 (magnetic field)
  • FCC 47 CFR Part 15 Class B (emission US)
  • ISO 13766-1 (EMC - Earth-moving and building construction machinery)
  • EN ISO 14982 (EMC - Agricultural and forestry machinery)
Radio spectrum
  • FCC 47 CFR Part 15 Class C (2.4 GHz band US)
  • FCC 47 CFR Part 15 Class E (5 GHz band US)
  • RSS-247 (2.4 GHz and 5 GHz band Canada)
  • ETSI EN 300 328 V2.1.1 (2.4 GHz band EU)
  • ETSI EN 301 893 V2.1.1 (5 GHz band EU)
  • GITEKI certification number: R201-140447
Encapsulation
IEC 60529, IP 54, IP66 with accessory
Shock
IEC 60068-2-27, 25 g
Vibration
  • IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal
  • IEC 61373 Cat 1 (Railway)
Safety
IEC 62368-1 (IT equipment audio-visual products)
Corrosion
  • ISO 12944 C4 G or H
  • EN60068-2-11

Shipping information


Packaging, type
Cardboard box
Packaging, contents
  • Camera with Advanced Image Streaming configuration and 24° lens
  • Hard case for FLIR A400/A500/A700 series
  • Ethernet cable M12 to RJ45, 2 m
  • Ethernet cable M12 to RJ45F, 0.3 m
  • Ethernet cable CAT6, 2 m/6.6 ft
  • Cable M12 to pigtail, 2 m
  • Gigabit PoE injector 16 W, with multi-plugs
  • Option, Macro mode 50/71/101 µm for 24°
  • Research Studio, Professional Edition - 1 Year Subscription (Online Activation)
  • Antenna WLAN 2.4/5 GHz + Wi-Fi
  • Option, Visual camera including MSX
  • Macro lens 2.0x
  • Printed documentation including the username and password for log in to the web interface of the camera
Packaging, weight
4.64 kg (10.2 lb)
Packaging, size
500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)
EAN-13
7332558028919
UPC-12
845188026011
