Rev. 84740
Last modified 2022-05-02
Additional supporting documents:
­Mechanical drawings
P/N: 89401-0202

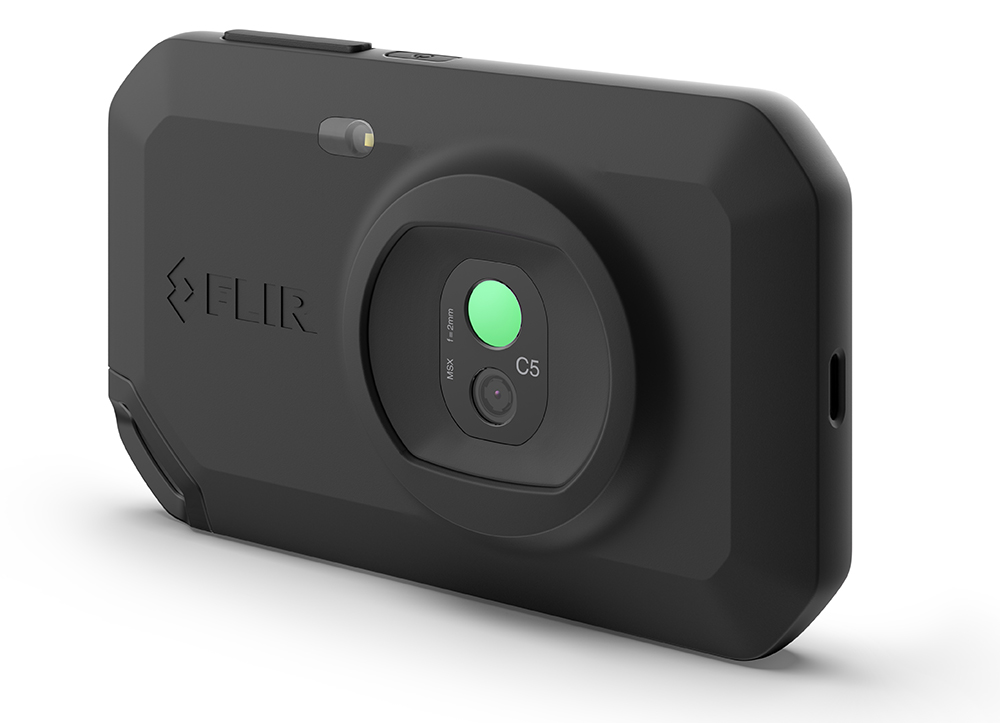

FLIR C5 (incl. Wi-Fi)

Graphic
High-res image, RGB color space, 1000 px wide

Imaging and optical data


IR resolution
160 × 120 pixels
Thermal sensitivity/NETD
< 70 mK
Field of view (FOV)
54° × 42°
Minimum focus distance
  • Thermal: 0.1 m (0.32 ft)
  • MSX: 0.3 m (0.98 ft)
Spatial resolution (IFOV)
6.3 mrad/pixel
F-number
1.1
Image frequency
8.7 Hz
Focus
Focus free
Digital zoom
Yes, zoom pinch, 1–4× continuous

Detector data


Detector type
Focal plane array, uncooled microbolometer
Spectral range
8–14 µm
Detector pitch
12 μm

Image presentation


Display resolution
640 × 480 pixels
Screen size
3.5 in
Aspect ratio
4:3
Auto orientation
Yes
Touch screen
Yes, capacitive
Display technology
IPS
Image adjustment
  • Automatic level and span
  • Manual level and span
  • 1-Touch level and span
Image modes
  • Infrared image
  • Visual image
  • MSX
  • Picture in picture (IR area on visual image)
Gallery
Yes, incl. thumbnails and custom folder structure

Measurement


Object temperature range
–20 to 400°C (–4 to 752°F)
Accuracy at ambient temp. 10 to 35°C (50 to 95°F) and object temp. above 0°C (32°F)
  • 0 to 100°C (32 to 212°F): ±3°C (±5.5°F)
  • 100 to 400°C (212 to 752°F): ±3%

Measurement analysis


Measurement functions
  • Spot
  • Box with max./min.
Measurements correction
  • Emissivity; matt/semi-matt/semi-glossy + custom value
  • Reflected apparent temperature
    • Atmospheric compensation
Color palettes
  • Iron
  • Gray
  • Rainbow
  • Arctic
  • Lava
  • Rainbow HC

Set-up


Set-up commands
  • Local adaptation of units, language, date and time formats
  • Screen brightness (high, medium, low)
Languages
Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish

Service functions


Camera software update
  • Automatic over Wi-Fi
  • USB via computer

Storage of images


Storage media
Built-in
Image storage capacity
> 5000 sets of images
Image file format
Standard JPEG, 14-bit measurement data included

Image annotations


Text
Soft keyboard on touchscreen, auto-prompt for note when image is saved

Video streaming
Non-radiometric video streaming
Yes; MSX, Thermal, Visual, Picture in Picture.
USB Video Class colorized uncompressed with overlay 9 Hz.

Digital camera


Resolution
5 MP
Focus
Fixed
Field of view
71.5 ° × 56° (84° diagonal)
Video lamp
Yes

Data communication interfaces


Wi-Fi
802.11 a/ac/b/g/n (2.4 and 5 GHz)
(5 GHz only for indoor use in Japan and Canada)
USB
USB 2.0, Type-C connector
Bluetooth
PAN

Radio
Wi-Fi
  • Standard: 802.11 a/b/g/n (HT20)
  • Frequency range:
    • 2401–2473 MHz
    • 5150–5250 MHz
  • Max. output power: 15 dBm
Bluetooth + EDR
  • Frequency range:
    • 2400–2484 MHz
  • Max. output power: 10 dBm

Power system


Battery type
Rechargeable Li ion battery (built-in)
Battery voltage
3.7 V
Battery capacity
1800 mAh
Battery operating time
4 hours
Battery charge life
>500 cycles
Charging system
USB-C (1 A)
Charging time
2 hours
Charging temperature
35°C (95°F)
External power operation
5 V, USB-C
Power management
Adjustable stand-by and automatic shut-down
Battery documents
For documents like MSDS and UN38.3 test reports/summaries, see:

Environmental data


Operating temperature range
–10 to 50°C (14 to 122°F)
Storage temperature range
–40 to 70°C (–40 to 158°F)
Humidity (operating and storage)
IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles
Relative humidity
95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing
EMC
  • EN 301 487-1
  • EN 301 489-17
  • FCC 47 CFR Part 15 Class B
Magnetic fields
EN 61000-4-8 level 5
Radio spectrum
  • ETSI EN 300 328
  • EN 301 489
  • FCC Title 47 CFR Part 15
  • RSS-247 Issue 2
Battery regulations
  • UL 1642
  • EN 62133 ed 2
Battery charging efficiency
  • BC Title 20
  • 10 CFR Section 430.23 (aa)
Encapsulation
Camera housing and lens: IP 54 (IEC 60529)
Shock
25 g (IEC 60068-2-27)
Vibration
2 g (IEC 60068-2-6)
Drop
Designed for 2 m (6.56 ft)
Safety
EN 62368-1
Environmental safety
  • REACH Regulation EC 1907/2006
  • RoHS2 Directive 2011/65/EC
  • WEEE Directive 2012/19/EC
  • Proposition 65
Declaration of conformity
See:

Physical data


Weight (including battery)
0.19 kg (0.42 lb)
Size (L × W × H)
138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
Battery weight
40 g (1.4 oz)
Tripod mounting
UNC ¼″-20
Housing material
  • PC and ABS, partially covered with TPE
  • Aluminum
Color
Black

Warranty and service


Warranty

Shipping information


Packaging, type
Cardboard box
Packaging, contents
  • C5
  • Printed documentation
  • FLIR Thermal Studio Starter
  • Wrist strap lanyard
  • USB cable
  • Pouch
Packaging, weight
0.52 kg (1.14 lb)
Packaging, size
160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in)
EAN-13
4743254004467
UPC-12
845188021832
Country of origin
Estonia
