General description
Part number
CM44
Part name
Professional 400A TRMS AC Clamp Meter + Type K

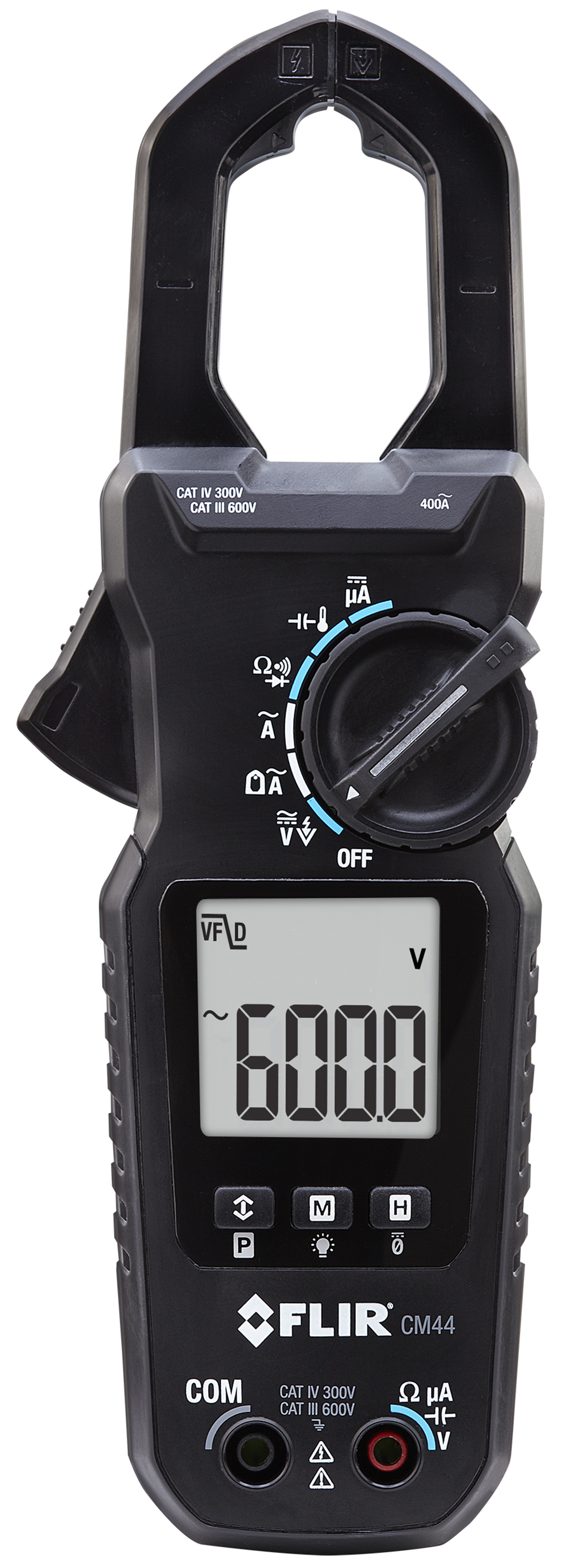

The FLIR CM44 Clamp Meter is a professional and affordable true RMS meter designed for commercial and residential electricians. The FLIR CM44 features AC clamp measurement to meet your unique needs. The meter is equipped with a bright backlit display for ease of use inside electrical panels. Accu-Tip technology delivers amperage measurements on smaller-gauged wires more accurately—to a 10th of a digit. It offers MAX/MIN/AVG recording, frequency measurement, and electrical field detection to help you determine voltage presence and relative strength of the field. Made with an over-molded, easy-to-grip design, the FLIR CM44 clamp meter is durable enough to withstand a 2 m drop, and the slim form factor is convenient to carry in your toolbag anywhere you go.
Professional performance at an affordable price:
  • Operates at –10 to 50°C (14–122°F).
  • Built to accept up to a 30 mm conductor.
  • True RMS measurements.
Features: DC voltage, AC voltage (digital low-pass filter/VFD), clamp-on AC current, Accu-Tip clamp-on AC current, frequency, resistance, capacitance, diode, DC μA, temperature.

Electrical measurement
True RMS voltage
Yes
Auto-ranging
Yes
DC V range
600.0 V
DC V accuracy
±1.0% + 5 digits
AC V range with digital low-pass filter
600.0 V
AC V range with digital low-pass filter: accuracy
±1.0% + 5 digits (50–60 Hz)
Peak RMS inrush current (AC V and AC A)

Response
80 ms to >90%
Resistance range
600.0 Ω, 6.000 kΩ, 60.00 kΩ
Resistance
±1.0% + 5 digits
Continuity
600.0 Ω ± 1.0% + 5 digits
Diode
2.000 V ± 1.5% + 5 digits
Capacitance
200.0 μF, 2500 μF ± 2.0% + 4 digits1
DC μA
200.0 μA, 2000 μA
DC μA accuracy (burden voltage)
±1.0% + 5 digits (3.5 mV/μA)

Temperature
Range2, accuracy3
–40.0 to 99.9°C, ±1.0% + 1°C
Range4, accuracy5
100–400°C, ±1.0% + 1°C
Range6, accuracy7
–40 to 99.9°F, ±1.0% + 2°F
Range8, accuracy9
100–752°F, ±1.0% + 2°F

Low-current Accu-Tip clamp-on AC A
Range (50–60 Hz)
60.00 A
Accuracy10111213 (50–60 Hz)
±2.% + 5 digits

Standard clamp-on AC A
Range (50 Hz~60 Hz)
60.00 A, 400.0 A
Accuracy14151617 (50–60 Hz)
±2.0% + 5 digits
Range (60–400 Hz)
60.00 A, 400.0 A
Accuracy 18192021 (60–400 Hz)
±3.0% + 5 digits

Line level frequency
Function (5.00–999.9 Hz)
600 V
Sensitivity22 (Sine RMS) (5.00–999.9 Hz)
50 V
Function (50.00 Hz~400.0 Hz)
60 A (low-current mode)
Sensitivity23 (Sine RMS) (50.00–400.0 Hz)
40 A
Function (50.00 Hz~400.0 Hz)
60 A, 400 A
Sensitivity24 (Sine RMS) (50.00–400.0 Hz)
40 A
Accuracy
1% + 5 digits

Non-Contact EF Voltage Detection
Typical voltage (tolerance: 10–36 V)
20 V
Bar graph indication
-
Typical voltage (tolerance: 23–83 V)
55 V
Bar graph indication
- -
Typical voltage (tolerance: 59–165 V)
110 V
Bar graph indication
- - -
Typical voltage (tolerance: 124–330 V)
220 V
Bar graph indication
- - - -
Typical voltage (tolerance: 250–600 V)
440 V
Bar graph indication
- - - - -
Indication
Number of bar graph segments and audible beep tones proportional to the detected field strength
Detection frequency
50/60 Hz
Detector:
Located Inside the top of the stationary jaw
Additional measurement functions
Data hold, MIN/MAX/AVG, backlit LCD, 80 ms peak RMS inrush current mode, relative/DC zero

General
Jaw opening
30 mm (1.2 in.) maximum
Display counts
6000
Measuring rate
5 times per second nominal
Calibration cycle
1 year calibration cycle recommended
Auto power off
32 minutes of inactivity
Power source
2 × 1.5 V AAA alkaline batteries

Environmental data
Operational temperature
–10 to +50°C (14–122°F) (non‐condensing) 10–30°C (50–86°F) (≤80% relative humidity (RH)) 30–40°C (86–104°F) (≤75% RH) 40–50°C (104–122°F) (≤45% RH)
Storage temperature
–20 to +60°C (4–140°F)
Relative humidity
80% maximum RH up to 31°C (88°F) decreasing linearly to 50% maximum RH at 50°C (122°F)
Temperature coefficient
0.15 × (specified accuracy)/°C, @ 0°C (32°F) to 18°C (64.4°F) or 28°C (82.4°F) to 50°C (122°F), or as otherwise specified
Operating altitude
2000 m (6562 ft.) maximum
Pollution degree
2

Physical data
Dimensions (L × W × H)
217 mm × 76 mm × 37 mm (8.5 in. × 3.0 in. × 1.5 in.)
Weight
186 g (6.6 oz.)

Warranty
Warranty

Certifications
Certifications
CE, cULus
Safety category rating
EN 61010-1 CAT IV—300 V, CAT III—600 V, EN 61010-2-032

Shipping information
Packaging type
Retail color box
Packaging contents
CM4x, 2 × AAA batteries, premium CAT IV silicone test leads, type-K thermocouple, FLIR carrying pouch, quick start guide, warranty registration card
Packaging weight
0.8 kg (1.8 lb.)
Packaging dimensions (H × W × L)
33 cm × 14 cm × 10.7 cm (13 in. × 5.5 in. × 4.3 in.)
Master carton weight
10.6 kg (23.4 lb.)
Master carton dimensions (H × W × L)
62.3 cm × 29.3 cm × 36.1 cm (24.6 in. × 11.6 in. × 14.3 in.)
Master carton quantity
12
UPC
793950370445
EAN
0793950370445
Country of origin
Taiwan
Tariff code
9030.31.0000

Technical support
Website
Supplies & accessories:
Disclaimer
