P/N: TG56

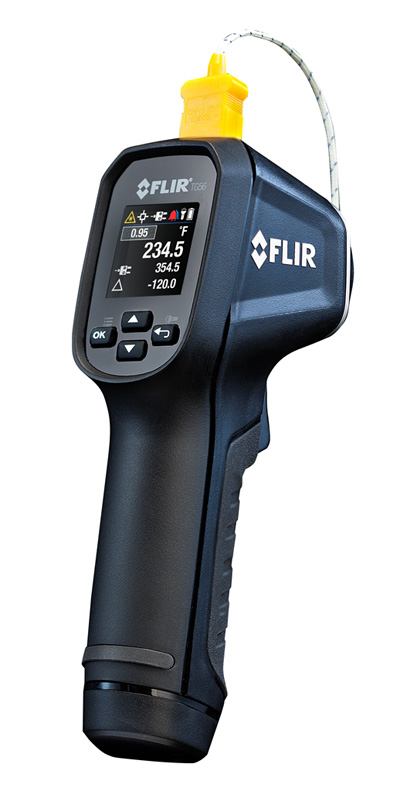

FLIR TG56: Spot IR Thermometer with Thermocouple

Graphic
High-res image, RGB color space, 1000 px wide

General description


Part number
TG56
Part name
Spot IR Thermometer with Thermocouple
The FLIR TG56 Spot IR Thermometer provides non-contact surface temperature readings so you can quickly and easily take measurements in places that are out of reach. Providing a distance-to-spot ratio of up to 30:1, the FLIR TG56 can measure small targets from a safe distance. New mode options give you control to view your current reading and the last two temperature readings simultaneously. A type K thermocouple input with included bead probe enables contact measurements with the ability to see your spot infrared temperature, contact measurements, and the difference in the readings on one screen. The FLIR TG56 has a color screen that makes it easy to navigate and select settings, plus adds visibility and efficiency to the advanced feature set. The FLIR TG56 is your go-to, pocket-sized device for efficient temperature measurement.
Measure high and low:
  • Easily take measurements in hard-to-reach spots from farther away.
  • Take non-contact surface temperature measurements with an infrared sensor.
  • 30:1 spot ratio to measure small targets from a safe distance.
  • Easily identify measurement locations with built-in laser targeting.
Simple to use:
  • Color display, easy to navigate.
  • Graphical menu structure allows easy access to settings.
  • Easy emissivity selection with predetermined levels and custom adjustment.
  • Stunning visual high and low alarms.
Convenient and rugged design:
  • Portable, compact size.
  • Rugged, industrial design that can withstand a 3 m drop.
  • Bright worklight to help you see your target in poor lighting conditions.
  • Tool-less battery compartment.

Spot infrared (IR) thermometer
IR temperature range
–30°C to +650°C (–22°F to +1202°F)
IR temperature accuracy
–30 to –10°C (–22 to +14°F): ±3.0°C (±5.4°F), –10 to <0°C (14 to <32°F): ±2.0°C (±3.6°F), 0–650°C (32–1202°F): ±1.0°C (±1.8°F) or ±1.0% (whichever is greater)
Emissivity
4 presets plus a custom setting (0.10–0.99)
Distance to spot
30:1
Field of view angle
0.04°
Resolution
0.1°C (0.1°F ≤ 999°F; 1°F ≥ 1000°F)
IR temperature response time
150 ms
Measurement modes
3 readings, minimum/maximum, AVG (6000 pts running average)/differential (maximum–minimum), IR/thermocouple/IR and thermocouple difference
Alarms
High/low/both, blue and red color indication

Thermocouple (TC) temperature
TC input type
K
TC input temperature range
–30 to +650°C (–22 to +1202°F)
TC input temperature accuracy
±2°C (3.6°F) or ±1% whichever is greater. Not including additional probe error: ±2.5°C (4.5°F)
TC input temperature resolution
0.1°C (0.1°F ≤ 999°F; 1°F ≥ 1000°F)
TC included type K range
–30 to +300°C (–22 to +572°F)

Laser

Laser type
Single class 1 laser (red; visible light)
Laser wavelength
650 ± 20 nm
Laser power
≤0.39 mW
Laser alignment
Parallel to measurement “cone”

Power source
Batteries
3 × 1.5V AAA
Battery life
>8 hours

General
Display
1.45 in. color TFT, 128 (W) × 128 (H) pixels
Auto power off
User-adjustable (5, 10, and 20 seconds)
Warranty
Drop test
3 m
IP rating
N/A
Worklight
Yes
Certifications
CE/FDA laser
Wrist strap
Included

Physical data
Weight
312 g (11 oz)
Dimensions (H × W × D)
158 × 44 × 73 mm (6.2. × 1.7. × 2.9 in)

Shipping information
Packaging type
Retail color box
Packaging contents
TG56, wrist strap/lanyard, type K thermocouple, user guide, 3 × AAA batteries, warranty registration card
Packaging weight:
0.5 kg (1.1 lb)
Packaging dimensions (H × W × L)
27.7 × 17.3 × 17.2 cm (10.9. × 6.9. × 6.8 in)
Master carton weight
7 kg (15.5 lb)
Master carton dimensions (H × W × L)
27.7 × 17.3 × 7.2 cm (10.9 × 6.9 × 2.9 in)
Master carton quantity
12
UPC
793950400562
EAN
0793950400562
Country of origin
China
Tariff code
9025.19.8080
