6  Camera parts

Graphic

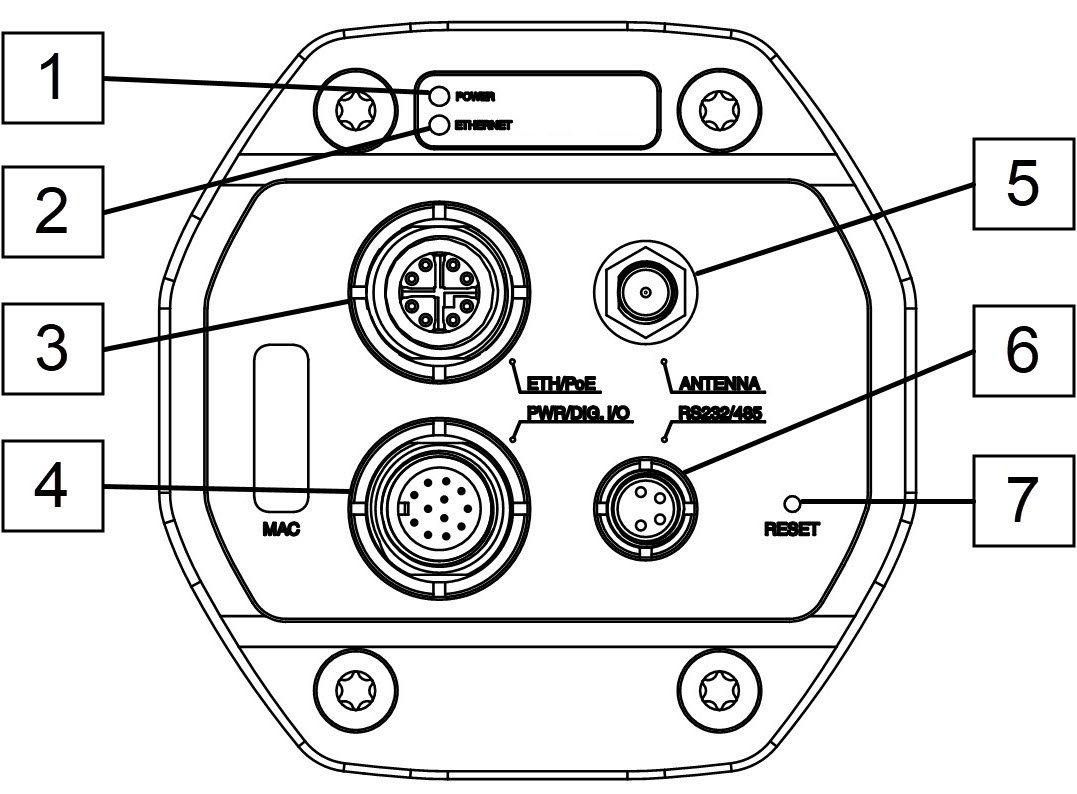

Figure 6.1  View from the rear

Graphic

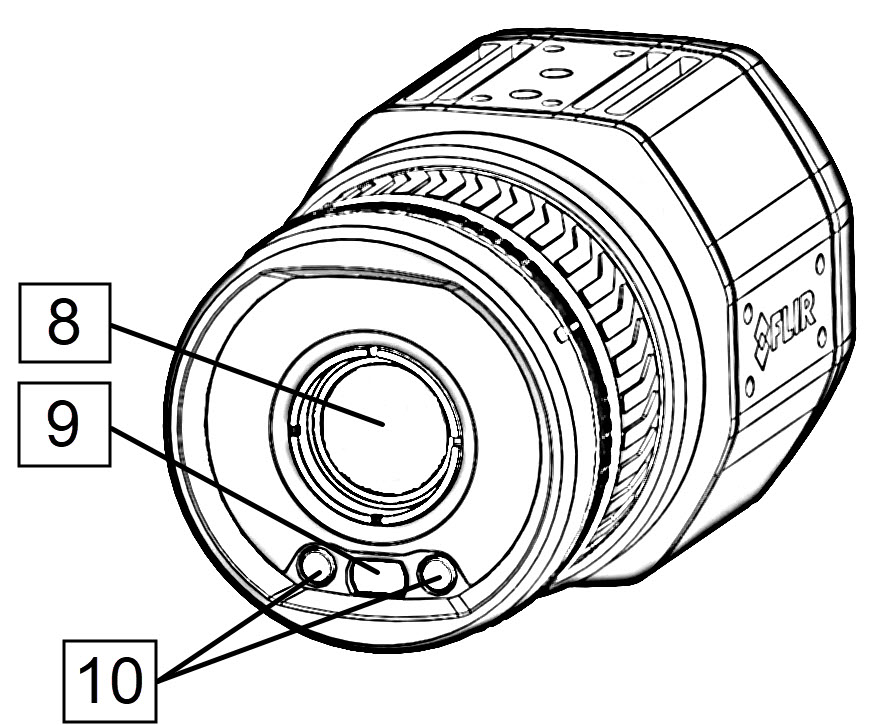

Figure 6.2  View from the front

  1. Power/error indicator LED (blue/red).
    For details, see section 16 Indicator LEDs and factory reset button .
  2. Ethernet communication indicator LED (green).
  3. Ethernet/PoE connector, X-coded.
  4. Power-I/O connector, A-coded.
  5. Antenna.
  6. RS232/485 connector, A-coded.
  7. Factory reset button.
  8. Infrared sensor.
  9. Visual camera.
  10. LED lamps.
